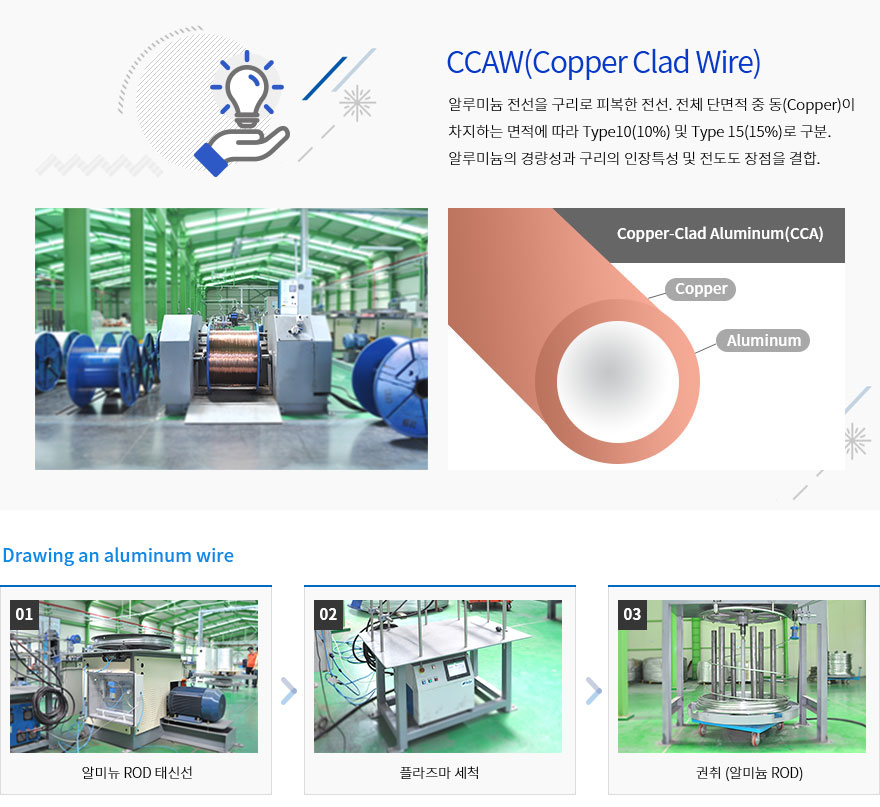

CCAW(Copper Clad Aluminum wire)

CCAW

CCAW 생산 가능 스펙 1

* 현재 CCAW 라인의 생산능력은 일 12시간 근무 기준(주 6일 근무 시) 15% 35~40톤 수준임

Bare Wire Diameter Cross Sectional Area <Copper Volume 15% Hard> σ= 67.5 %
2016.04.09 REC. : 0
Nominal Copper Thickness Weight Nominal Resistance
㎏ / ㎞ Ω / ㎞ [ at 20℃ ]
㎜ ㎟ ㎜ CCAW 15 Copper CCAW 15 Copper
5.00 19.6350 0.1951 71.668 174.751 1.3008 0.8781
3.00 7.0686 0.1171 25.800 62.910 3.6135 2.4391
2.60 5.3093 0.1015 19.379 47.253 4.8108 3.2473
2.30 4.1548 0.0898 15.165 36.977 6.1477 4.1497
2.05 3.3006 0.0800 12.047 29.376 7.7385 5.2235
2.00 3.1416 0.0780 11.467 27.960 8.1303 5.4880
1.80 2.5447 0.0702 9.288 22.648 10.0374 6.7753
1.60 2.0106 0.0624 7.339 17.895 12.7035 8.5750
1.20 1.1310 0.0468 4.128 10.066 22.5841 15.2444
1.00 0.7854 0.0390 2.867 6.990 32.5211 21.9519
0.80 0.5027 0.0312 1.835 4.474 50.8142 34.2999
0.60 0.2827 0.0234 1.032 2.516 90.3363 60.9776
0.50 0.1963 0.0195 0.717 1.748 130.0843 87.8077
0.40 0.1257 0.0156 0.459 1.118 203.2568 137.1995
0.32 0.0804 0.0125 0.294 0.716 317.5887 214.3742
0.25 0.0491 0.0098 0.179 0.437 520.3374 351.2308
0.18 0.0254 0.0070 0.093 0.226 1003.7372 677.5285
0.15 0.0177 0.0059 0.065 0.157 1445.3815 975.6410
0.12 0.0113 0.0047 0.041 0.101 2258.4086 1524.4391

CCAW 생산 가능 스펙 2

Bare Wire Diameter Cross Sectional Area <Copper Volume 20% Hard> σ= 70.05 %
2016.04.09 REC. : 0
Nominal Copper Thickness Weight Nominal Resistance
㎏ / ㎞ Ω / ㎞ [ at 20℃ ]
㎜ ㎟ ㎜ CCAW 20 Copper CCAW 20 Copper
5.00 19.6350 0.2639 77.754 174.751 1.2455 0.8781
3.00 7.0686 0.1584 27.992 62.910 3.4597 2.4391
2.60 5.3093 0.1372 21.025 47.253 4.6061 3.2473
2.30 4.1548 0.1214 16.453 36.977 5.8860 4.1497
2.05 3.3006 0.1082 13.071 29.376 7.4092 5.2235
2.00 3.1416 0.1056 12.441 27.960 7.7843 5.4880
1.80 2.5447 0.0950 10.077 22.648 9.6102 6.7753
1.60 2.0106 0.0845 7.962 17.895 12.1629 8.5750
1.20 1.1310 0.0633 4.479 10.066 21.6230 15.2444
1.00 0.7854 0.0528 3.110 6.990 31.1371 21.9519
0.80 0.5027 0.0422 1.991 4.474 48.6517 34.2999
0.60 0.2827 0.0317 1.120 2.516 86.4919 60.9776
0.50 0.1963 0.0264 0.778 1.748 124.5483 87.8077
0.40 0.1257 0.0211 0.498 1.118 194.6067 137.1995
0.32 0.0804 0.0169 0.318 0.716 304.0730 214.3742
0.25 0.0491 0.0132 0.194 0.437 498.1932 351.2308
0.18 0.0254 0.0095 0.101 0.226 961.0208 677.5285
0.15 0.0177 0.0079 0.070 0.157 1383.8699 975.6410
0.12 0.0113 0.0063 0.045 0.101 2162.2967 1524.4391
